Description
The Wireless-N Home Router is really three devices in one box. First, there’s the Wireless Access Point, which lets you connect to the network without wires. There’s also a built-in 4-port full-duplex 10/100 Switch to connect your wired-Ethernet devices together. Finally, the Router function ties it all together and lets your whole network share a high-speed cable or DSL Internet connection.
The Access Point built into the Router uses the very latest wireless networking technology: Wireless-N (draft 802.11n). By overlaying the signals of multiple radios, Wireless-N’s “Multiple In, Multiple Out” (MIMO) technology multiplies the effective data rate. Unlike ordinary wireless networking technologies that are confused by signal reflections, MIMO actually uses these reflections to increase the range and reduce “dead spots” in the wireless coverage area. The robust signal travels farther, maintaining wireless connections up to 3 times farther than standard Wireless-G.

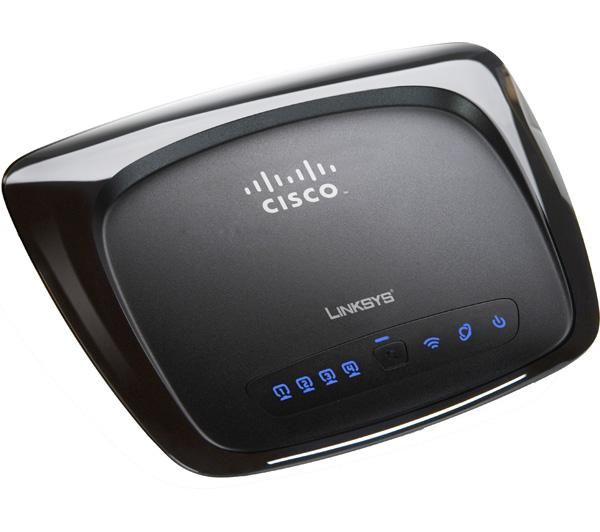

Manufactured by: LINKSYS
Model/Part : WRT120N
Device Type: Wireless router
Form Factor: External
Networking Connectivity Technology: Wireless, wired
Integrated Switch: 4-port switch
Line Coding Format: DBPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM, OFDM
Data Link Protocol: Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Switching Protocol: Ethernet
Network / Transport Protocol: PPTP, L2TP, PPPoE
Routing Protocol: RIP, static IP routing
Remote Management Protocol: HTTP, HTTPS
Status Indicators: Port status, power
Features: 128-bit encryption, DHCP support, NAT support, auto-uplink (auto MDI/MDI-X), Stateful Packet Inspection (SPI), MAC address filtering, VPN passthrough, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Wi-Fi Protected Setup (WPS)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n (draft 2.0)
Antenna: External integrated
Antenna Qty: 2
Directivity: Omni-directional
Gain Level: 2 dBi
Interfaces: 1 x network – Radio-Ethernet 4 x network – Ethernet 10Base-T/100Base-TX – RJ-45 1 x network – Ethernet 10Base-T/100Base-TX – RJ-45 ( WAN )
Encryption Algorithm: 128-bit WEP, WPA2
Compliant Standards: CE, UL, cUL, ICES-003, RSS-210, FCC
Power Device: Power adapter – external
Width: 8 in
Depth: 6.3 in
Height: 1.4 in
Weight: 8.4 oz
