CISCO NETWORKING

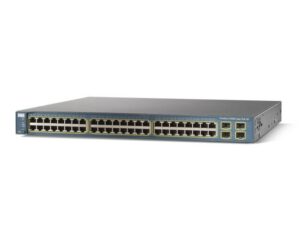

Cisco Catalyst 2960 Series Intelligent Ethernet Switches are a new family of fixed-configuration standalone devices that provide desktop Fast Ethernet and Gigabit Ethernet connectivity, enabling enhanced LAN services for entry-level enterprise, mid-market, and branch office networks. The Catalyst 2960 Series offers integrated security, including network admission control (NAC), advanced quality of service (QoS), and resiliency to deliver intelligent services for the network edge. Manufactured by: CISCO Model/Part #: WS-C2960-24TT-L General Device Type Switch Enclosure Type Rack-mountable - 1U RAM 64 MB Flash Memory 32 MB flash Ports Qty 24 x Ethernet 10Base-T, Ethernet 100Base-TX Auxiliary Network Ports 2x10/100/1000Base-T(uplink) Data Transfer Rate 100 Mbps Data Link Protocol Ethernet, Fast Ethernet Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2 Communication Mode Half-duplex, full-duplex Switching Protocol Ethernet MAC Address Table Size 8K entries Status Indicators Link activity, port transmission speed, port duplex mode, power, link OK, system Layer 2 switching, auto-sensing per device, auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, E-mail alert, DHCP snooping, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) Expansion / Connectivity Interfaces 24 x network node - Ethernet 10Base-T/100Base-TX - RJ-45 female 2 x network host - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2) Compliant Standards CE, FCC Class A certified, TUV GS, cUL, NOM, VCCI Class A ITE, IEC 60950, EN55024, EN55022 Class A, CSA 22.2 No. 60950, FCC Part 15, MIC, UL 1950 Third Edition, UL 60950-1, EN 60950-1 Power Device Power supply - internal Voltage Required AC 120/230 V ( 50/60 Hz ) Power Consumption Operational 28 Watt Redundant Power System (RPS) connector Software / System Requirements Min Operating Temperature 23 ?F Max Operating Temperature 113 ?F

Cisco Systems is the worldwide leader in networking for the Internet. Cisco's networking solutions are the foundation of the Internet and most corporate, education, and government networks around the world. Cisco provides the broadest line of solutions for transporting data, voice and video within buildings, across campuses, or around the world. Cisco offers this footstand kit for a single 7914 IP Phone Expansion Module. Manufactured by: CISCO Model/Part #: CP-SINGLFOOTSTAND The Cisco IP Phone Expansion Module 7914 extends the capabilities of the Cisco IP Phones 7960G, 7961G, 7970G and 7971G-GE with additional buttons and an LCD display. With this expansion module, you add 14 buttons to the existing six buttons of the Cisco IP Phones 7960 and 7961G and the existing eight buttons of the Cisco IP Phones 7970G and 7971G-GE, increasing the total number of buttons when you add one or two Cisco 7914 Expansion Modules. You can use up to two Cisco 7914 Expansion Modules with a Cisco IP Phones 7960G, 7961G, 7970G or 7971G-GE.

Cisco 1600 series routers are a family of small desktop routers that link small-to-medium remote Ethernet LANs to regional and central offices over multiple WAN connections. Cisco 1600 series routers connect small offices with Ethernet LANs to WANs through Integrated Services Digital Network (ISDN), asynchronous serial, and synchronous serial connections. Manufactured by: CISCO Model/Part #: CISCO1602 Device Type Router Form Factor External - modular Installed Modules Qty (Max) 1 (installed) / 1 (max) Type 1 x Motorola 68360 33 MHz RISC Max Supported Qty 1 RAM 8 MB (installed) / 24 MB (max) Flash Memory 4 MB (installed) / 16 MB (max) Connectivity Technology Wired Line Rate Fractional T-1 Data Transfer Rate 10 Mbps Line Coding Format AMI, B8ZS Framing Format AT&T 54016, D4, ESF Data Link Protocol Ethernet, serial Switching Protocol SMDS, PPP, Ethernet Network / Transport Protocol TCP/IP, IPX/SPX, AppleTalk Remote Management Protocol SNMP Status Indicators Port status, link activity, power Features Manageable Compliant Standards IEEE 802.3 Type 1 x DSU/CSU Expansion Slots Total (Free) 1 ( 1 ) x expansion slot 1 ( 1 ) x PC Card 1 memory Interfaces 1 x network - Ethernet AUI - 15 pin D-Sub (DB-15) - 1 1 x network - Ethernet 10Base-T - RJ-45 - 1 1 x serial - RJ-48 - 1 1 x management - console - RJ-45 - 1 Power Device Power supply - external Voltage Required AC 110/240 V 10% ( 50/60 Hz ) Power Consumption Operational 27 Watt

Cisco offers a wide variety of connectivity, expansion and upgrade modules to accommodate the range of application needs in customer networks. The network modules assure customers that they can choose a connectivity solution that fits their requirements. As modular components, they are easily and inexpensively field-upgradeable as customer requirements change. Cisco 1600 series routers are a family of small desktop routers that link small-to-medium remote Ethernet LANs to regional and central offices over multiple WAN connections. Manufactured by: CISCO Model/Part #: CISCO1603R Device Type Router Form Factor External - modular Installed Modules Qty (Max) 0 (installed) / 1 (max) Type 1 x Motorola 68360 33 MHz RISC Max Supported Qty 1 RAM 8 MB (installed) / 24 MB (max) Flash Memory 4 MB (installed) / 16 MB (max) Connectivity Technology Wired Data Transfer Rate 10 Mbps Data Link Protocol Ethernet, ISDN Switching Protocol SMDS, X.25, Frame Relay, Ethernet Network / Transport Protocol TCP/IP, IPX/SPX Remote Management Protocol SNMP Status Indicators Port status, link activity, power Features Manageable Compliant Standards IEEE 802.3 Type ISDN terminal adapter Digital Signaling Protocol ISDN BRI Max Transfer Rate 128 Kbps Expansion Slots Total (Free) 1 ( 1 ) x expansion slot Interfaces 1 x network - Ethernet AUI - 15 pin D-Sub (DB-15) - 1 1 x network - Ethernet 10Base-T - RJ-45 - 1 1 x management - console - RJ-45 - 1 1 x network - ISDN BRI ST - RJ-45 - 1 Power Device Power supply - external Voltage Required AC 110/220 V ? 10% ( 50/60 Hz ) Power Consumption Operational 27 Watt
