Description

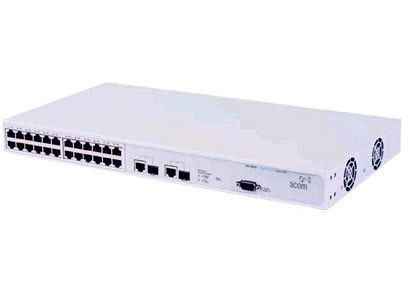

For workgroup 10/100 deployments needing the added benefits of Layer 3 switching, the SuperStack 3 Switch 3226 is the right solution. This wirespeed switch has twenty-four 10/100 ports and two 10/100/1000 or SFP-based fiber Gigabit dual-purpose ports.
The Switch 3200’s Layer 3 capabilities improve workgroup performance by routing segmented traffic locally at the wiring closet, without the need to send the traffic to the network core for routing. Through its support of dynamic (RIP) routing, deployment and management is greatly simplified over working with static routes, with automatic reconfiguration when there are topology changes.
Manufactured by: 3COM
Model/Part : 3CR17500-91
Device Type: Switch
Enclosure Type: External – 1U
Processor: MPC8245 : 333 MHz
Memory RAM: 32 MB
Flash Memory: 16 MB flash
Networking Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 2×10/100/1000Base-T/SFP (mini-GBIC)
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Routing Protocol: RIP-1, RIP-2, IGMPv2, IGMP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 2c, HTTP
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Features: Flow control, full duplex capability, layer 3 switching, layer 2 switching, IP-routing, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, manageable
Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
Expansion Slots Total (Free): 2 ( 2 ) x SFP (mini-GBIC)
Interfaces: 24 x network – Ethernet 10Base-T/100Base-TX – RJ-45 2 x network – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x management – RS-232 – 9 pin D-Sub (DB-9)
Encryption Algorithm: DES, RC4, MD5, SSL
Authentication Method: Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, AS/NZ 3548 Class A, ICES-003 Class A
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 55 Watt
Width: 17.3 in
Depth: 9.9 in
Height: 1.8 in
Weight: 9.5 lbs
