Description
The SuperStack II Hub 10 family of Ethernet Hubs provide the flexibility and economy of stackable hubs, with a variety of enhancement possibilities with modules for different backbone connections, management, and bridging capabilities. Designed for growing workgroups, these hubs integrate easily with other SuperStack II system devices for remote office connectivity, high-performance switching, and optional redundant or uninterruptible power. You can take advantage of the robust feature set of these hubs with a low initial investment, then easily increase port density and add comprehensive RMON or advanced RMON management and bridging/switching capabilities as you network needs increase.
Manufactured by: 3COM

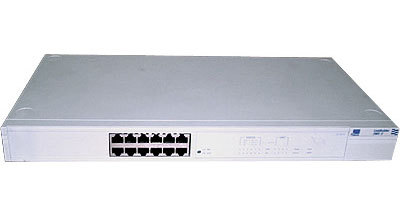

Model/Part : 3C16670
Device Type: Hub – stackable
Enclosure Type: Rack-mountable – external
Installed Modules Qty (Max): 0 (installed) / 1 (max)
Networking Ports Qty: 12 x Ethernet 10Base-T, Ethernet AUI
Data Transfer Rate: 10 Mbps
Data Link Protocol: Ethernet
Connectivity Technology: Wired
Status Indicators: Port status, link activity, collision status, power, remote control
Features: Stackable
Compliant Standards: IEEE 802.3
Expansion Slots Total (Free): 1 ( 1
Interfaces: 1 x network – Ethernet 10Base-5 – 15 pin D-Sub (AUI) female – 1 12 x network – Ethernet 10Base-T – RJ-45 female – 12 1 x network stack device – 50 pin D-Sub (DB-50) female – 1 1 x network stack device – 50 pin D-Sub (DB-50) male – 1
Power Device: Power supply – integrated
Voltage Required: AC 100/240 V ? 10% ( 50/60 Hz )
Power Consumption Operational: 28 Watt
Enclosure Color: White
Width: 17.3 in
Depth: 9.1 in
Height: 1.7 in
Weight: 5.7 lbs
