Description

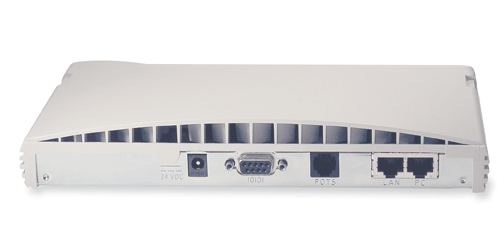

The 3Com NBX Analog Terminal Adapter (ATA) is a stand-alone unit with a single 10/100 Ethernet (FXS) port. It allows an analog and an Ethernet device to share the same Ethernet LAN cabling with the flexibility of being powered by a local power supply or via an IEEE 802.3af-compliant Power over Ethernet (PoE) power source. The ATA connects to the 3Com SuperStack 3 Switch 4400 PWR, 3Com IntelliJack switch, or any other PoE-compliant power source via an RJ-45 Ethernet connector.
Manufactured by: 3COM
Model/Part : 3C10400B
Device Type: VoIP phone adapter
Localization: United States
Form Factor: External
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet
Switching Protocol: Ethernet
Status Indicators: Power, link OK
Compliant Standards: IEEE 802.3af
Telephony Interfaces: 1 phone (FXS)
Interfaces: 2 x network – Ethernet 10Base-T/100Base-TX – RJ-45 1 x phone line – FXS – RJ-11 1 x management – RS-232 – 9 pin D-Sub (DB-9)
Compliant Standards: RoHS
Power Over Ethernet (PoE): Yes
Power Device: Power adapter – external
