Description

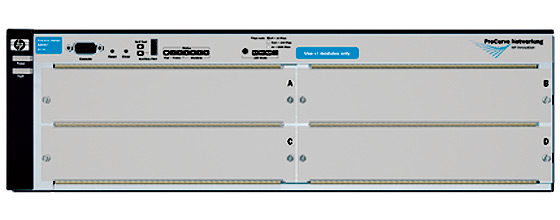

The ProCurve Switch 4200vl series consists of modular chassis that provide a flexible, cost-effective LAN solution as an alternative to stackables. These switches offer a proven chassis form factor with high quality and reliability in 10/100 and 10/100/1000 scalable solutions that integrate easily into any network.
Manufactured by:HP
Model/Part :J8770A
Device Type: Switch
Enclosure Type: Rack-mountable – 3U
Installed Modules Qty (Max): 0 (installed) / 4 (max)
Localization: English / United States
Processor: 1 x Motorola MPC8245 : 330 MHz
Memory RAM: 64 MB SDRAM
Flash Memory: 24 MB flash
Network Routing Protocol: IGMPv2, IGMP, IGMPv3
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Connectivity Technology: Wired
Features: Routing, VLAN support, manageable
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Expansion Slots Total (Free): 4 ( 4 ) x expansion slot
Interfaces: 1 x management – RS-232C – 9 pin D-Sub (DB-9)
Encryption Algorithm: SSL
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards: FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, CSA 22.2 No. 950, UL 60950
Power Device: Power supply – redundant
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 630 Watt
Width: 17.4 in
Depth: 15.3 in
Height: 5.2 in
Weight: 23.8 lbs
