Description

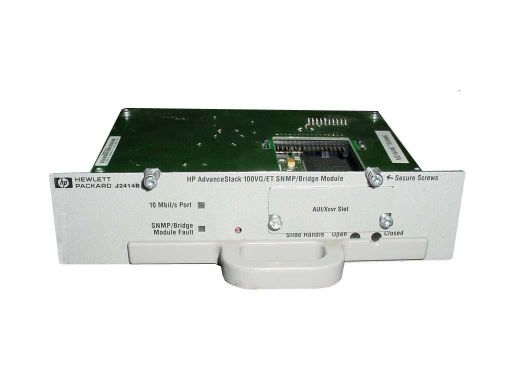

The module slides into the expansion bay located in the back of the unit providing full SNMP management capability. These features include intruder prevention, auto port disabling, network management alarm, eavesdrop prevention, authorized managers list, and password protection. The unit includes an Intel i960 RISC-based processor, 8MB of RAM, and 128KB on a Flash EEPROM to provide ample processing power and memory capacity for future network management needs. It supports SNMP/IP and IPX network management on HP OpenView network management products and is also manageable via any management station with standard SNMP MIB browser functionality.
Manufactured by:HP
Model/Part :J2414B
Device Type Bridge
Form Factor Plug-in module
Type 1 x Intel i960 RISC
Max Supported Qty 1
RAM 2 MB (installed) / 2 MB (max)
Flash Memory 512 KB (installed) / 1 MB (max)
Connectivity Technology Wired
Data Transfer Rate 100 Mbps
Data Link Protocol Ethernet, Ethernet 100VG-AnyLAN
Network / Transport Protocol TCP/IP, IPX/SPX
Remote Management Protocol SNMP
Status Indicators Port status, link OK
Features Network monitoring
Interfaces 1 x network – Ethernet – RJ-45 – 1
Compatible Slots 1
Min Operating Temperature 32 ?F
Max Operating Temperature 131 ?F
Humidity Range Operating 15 – 95%
Width 1.9 in
Depth 6.8 in
Height 1.9 in
