Description

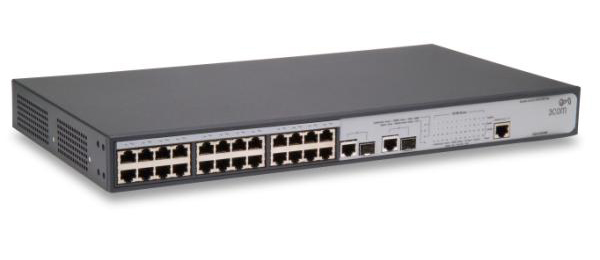

The “smart” voice-ready 3Com Baseline Switch 2426-PWR Plus is a web-managed Layer 2 10/100 Ethernet switch. It offers enterprise-class features, customized and priced for small- and mid-sized organizations. With an easy-to-use switch interface, and the advanced features (VLANs, PoE, IEEE 802.1X authentication and Rapid Spanning Tree) needed is the most cost-effective way to provide a converged network.
The Baseline Switch 2426-PWR Plus has twenty-four 10/100 ports and two dual-purpose Gigabit ports (copper or SFP-based fiber) to connect to high-performance computers, servers, or core network backbones.
Manufactured by: 3COM
Model/Part : 3CBLSF26PWR
Device Type: Switch
Enclosure Type: External – 1U
Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Auxiliary Network Ports: 2×10/100/1000Base-T/SFP (mini-GBIC)
Data Transfer Rate: 100 Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Remote Management Protocol: SNMP 1, SNMP 2, HTTP
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
MAC Address Table Size: 8K entries
Status Indicators: Port status, port transmission speed, power
Features: Flow control, layer 2 switching, auto-negotiation, trunking, VLAN support, IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, Quality of Service (QoS)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x
Expansion Slots Total (Free): 2 ( 2 ) x SFP (mini-GBIC)
Interfaces: 24 x network / power – Ethernet 10Base-T/100Base-TX – RJ-45 2 x network host – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45
Encryption Algorithm: MD5
Compliant Standards: VCCI Class A ITE, EN55024, EN55022 Class A, CSA 22.2 No. 60950, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1
Power Over Ethernet (PoE): Yes
Power Device: Power supply – internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 290 Watt
Width: 17.3 in
Depth: 9.4 in
Height: 1.7 in
Weight: 7.3 lbs
